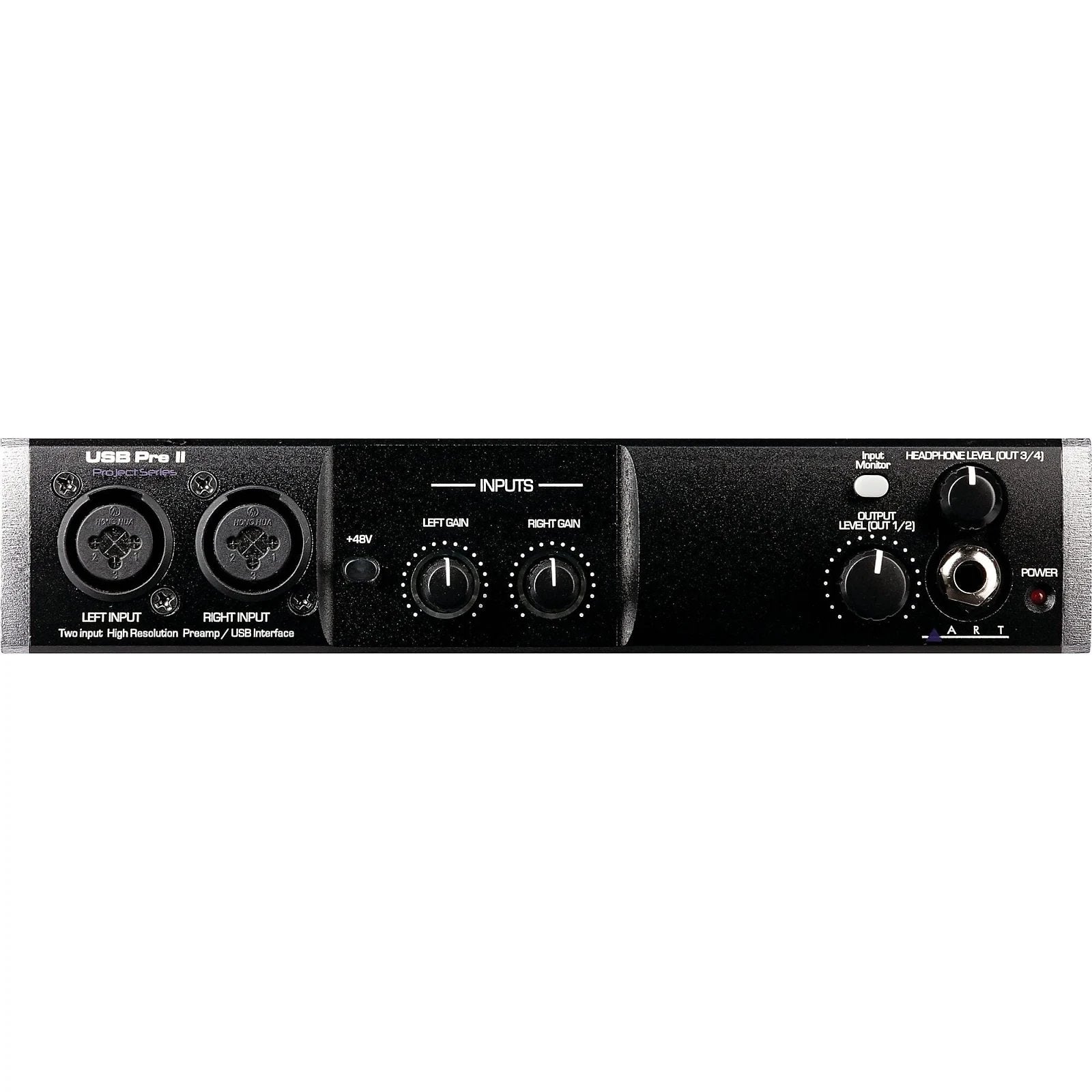

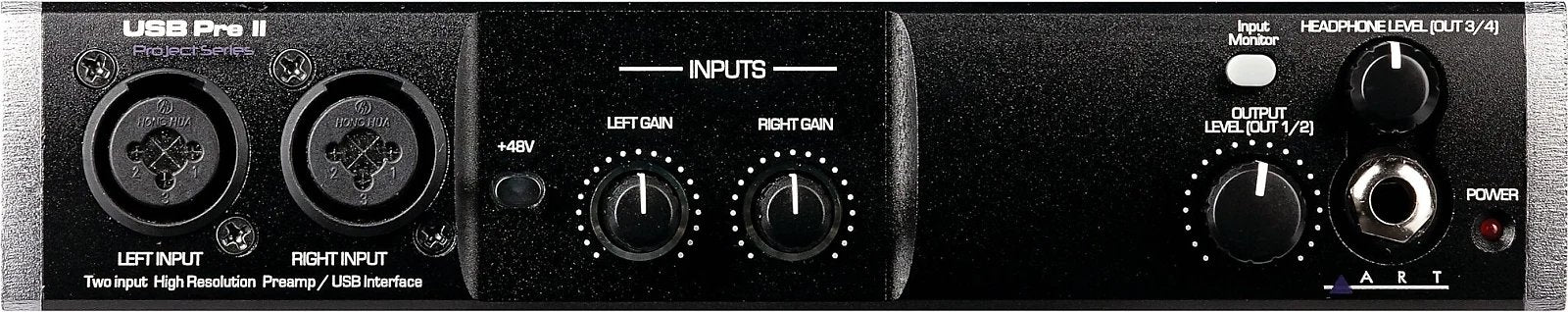

The ART USB Pre II digital interface takes instrument or mic level signals and converts them with a 32-bit ADC containing sample rates from 44.1kHz to 192kHz for computer input. USB audio is converted using a 32-bit stereo DAC to analog audio. Custom transformers remove ground loops and other system noise between digital and analog audio systems.
Features:
- High-Quality 32-bit A / D to D / A convertors
- Sample rates from 44.1k to 192kHz
- Low latency
- ASIO and WDM driver
- Transformer isolated outputs
- Front panel input monitoring switch
- Low noise discrete mic preamps
- High Z instrument inputs
- Zero latency monitoring
- Front panel headphone output
- MIDI input / MIDI output
Specs:
-Input Connections: 2 - XLR/1/4-inch combo jacks, USB 1.0/2.0, MIDI DIN 5.
-Output Connections: Impedance Balanced 1/4-inch, 1/4-inch Headphone output, MIDI output
-Max input level: +15dBu Inst.,19dBu Bal. Line, +3.5dBu mic
-Input Impedance: >1M Ohms 1/4-inch input, >7k Ohms XLR input
-Max output level: +12dBu (CH1/2), +6.5dBu (CH3/4)
-Output Impedance: 300 Ohms (balanced 1/4-inch), 32 Ohms (headphone stereo 1/4-inch)
-Headphone output: 60mW/ channel max.
-Frequency Response: 20Hz to 20KHz +/- 1dB
-THD: <0.002% 20-20k, ADC-USB + USB-DAC
-CMRR: >87dB(mic), 60dB(line)
-Channel Separation: >75 dB 29
-Signal to Noise Ratio: >ADC: 115dB, DAC: 110dB
-Equivalent Input Noise: -128 dBu typical (XLR balanced, gain @ maximum)
-Phantom Power: +48 dB switch selectable, +48Volts DC, filtered, current limited
-A/D-D/A: 32 Bit, 44.1 kHz to 192 kHz, USB selectable from computer
-Computer Interface: USB class compliant plug-and play Mac and PC interface
-Power Requirements: USB 2.0, 400mA
-Dimensions (HWD): 8.75-inch x 1.75-inch x 6.2-inch (222mm x 44mm x 157mm)
-Weight: 2.15 lbs. (.974kg)
-Chassis Type: All aluminum black anodized
-Note: 0 dBu = 0.775Vrms
