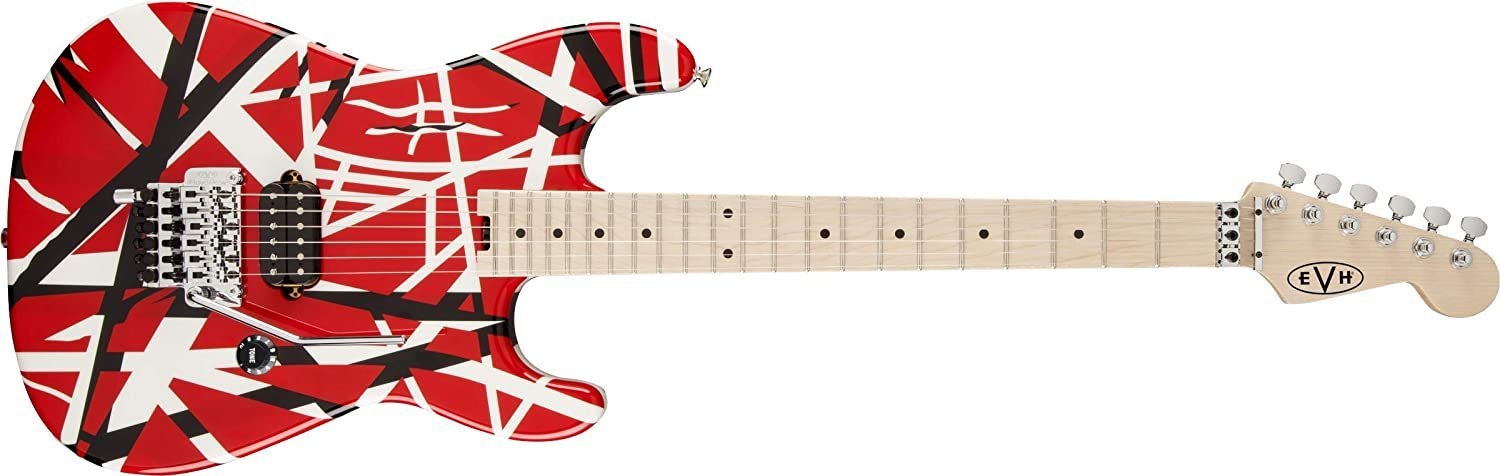

With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.
The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics — Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.
HEADSTOCKLicensed Fender® Stratocaster®
NECK MATERIALQuartersawn Maple
NECK FINISHHand-Rubbed Satin Urethane
NECK SHAPEEVH® Modified "C" Backshape
NECK CONSTRUCTIONBolt-On with Graphite Reinforcement
NECK THICKNESS.790" at 3rd Fret & .810" at 12th Fret
FINGERBOARD RADIUS12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIALMaple
POSITION INLAYSBlack Dot
NUMBER OF FRETS22
TRUSS ROD NUTHeel-Mount Truss Rod Adjustment Wheel
STRING NUTFloyd Rose® R3 Locking
NUT WIDTH1.6875" (42.86 mm)
NUT MATERIALFloyd Rose® R3 Locking
BRIDGEEVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
TREMOLO BLOCKBrass
PICKUP COVERSBlack
CONTROL KNOBSBlack Stratocaster®-Style Skirt (Labeled "Tone")
HARDWARE FINISHChrome
TUNING MACHINESEVH®-Branded Gotoh®
STRING TREESFloyd Rose® Retainer Bar
STRINGSEVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARMFloyd Rose® 1000 Series Locking
NECK PLATE4-Bolt Standard
STRAP BUTTONSOversized
