*** This listing is for a brand new 2023 EVH Striped Series Guitar. Guitar was used in an in store demo and then carefully packaged back into the original box. You'll never know that the guitar was not brand new. You are eligible for the full factory warranty as we are authorized EVH dealers and this guitar was never registered.
With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

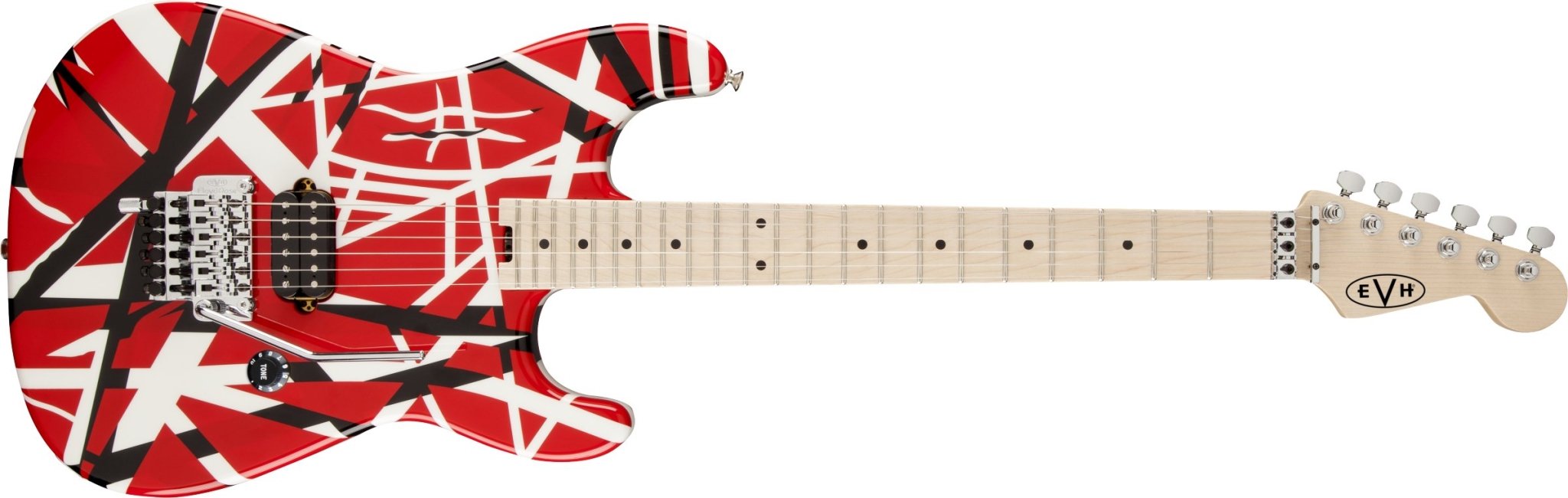

The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics — Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.
HEADSTOCKLicensed Fender® Stratocaster®
NECK MATERIALQuartersawn Maple
NECK FINISHHand-Rubbed Satin Urethane
NECK SHAPEEVH® Modified "C" Backshape
NECK CONSTRUCTIONBolt-On with Graphite Reinforcement
NECK THICKNESS.790" at 3rd Fret & .810" at 12th Fret
FINGERBOARD RADIUS12"-16" Compound Radius (304.8 mm to 406.4 mm)
FINGERBOARD MATERIALMaple
POSITION INLAYSBlack Dot
NUMBER OF FRETS22
TRUSS ROD NUTHeel-Mount Truss Rod Adjustment Wheel
STRING NUTFloyd Rose® R3 Locking
NUT WIDTH1.6875" (42.86 mm)
NUT MATERIALFloyd Rose® R3 Locking
BRIDGEEVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
TREMOLO BLOCKBrass
PICKUP COVERSBlack
CONTROL KNOBSBlack Stratocaster®-Style Skirt (Labeled "Tone")
HARDWARE FINISHChrome
TUNING MACHINESEVH®-Branded Gotoh®
STRING TREESFloyd Rose® Retainer Bar
STRINGSEVH® Nickel Plated Steel (.009-.042 Gauges)
TREMOLO ARMFloyd Rose® 1000 Series Locking
NECK PLATE4-Bolt Standard
STRAP BUTTONSOversized
Basswood Stratocaster-style bodiy
3 color patterns inspired by Van Halen's own design from his career (while supplies last)
Quartersawn maple neck
Floyd Rose locking nut
EVH-branded locking tremolo
