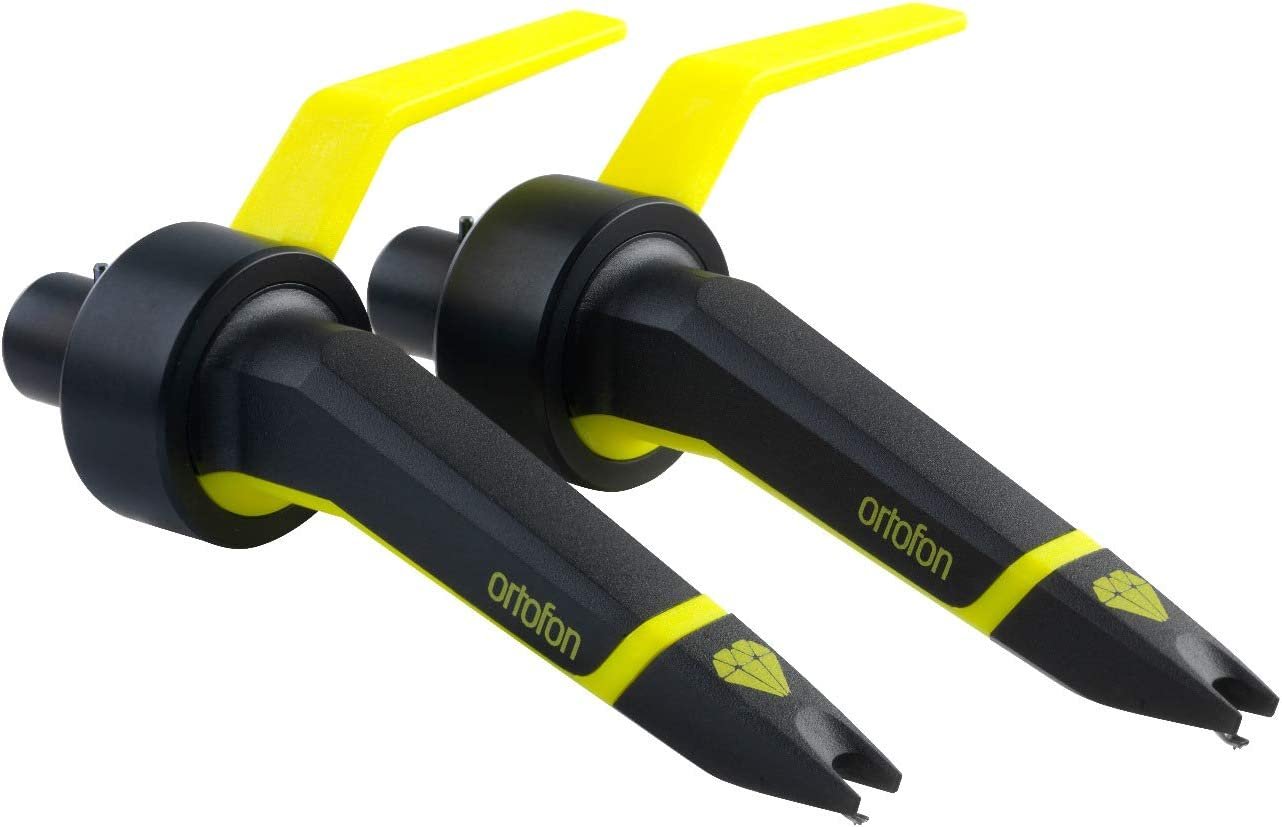

Concorde MK2 Club
The best sound quality achievable for traditional vinyl playback
The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club.
• The CLUB features a Special-Elliptic stylus that allows for detailed sound quality: Special-Elliptic stylus fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.
• The CLUB’s 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
The CLUB offers an outstanding platform for archival and sampling
Stylus Type
Spherical
Spherical
Spherical
Spherical
Elliptical
Tracking Force
3.0g
4.0g
4.0g
4.0g
3.0g
Output
6 mV
6 mV
10 mV
10 mV
8 mV
Frequency Range
20 - 20,000 Hz
20 - 20,000 Hz
20 - 18,000 Hz
20 - 18,000 Hz
20 - 20,000 Hz
Summary
Balanced and functional entry-level cartridge
Advanced versatile allrounder cartridge for general purpose
Sophisticated cartridge especially designed for DVS-users
High-performance cartridge for precise scratching and back cueing
High-quality cartridge with superb sound quality. Ideal for club & studio
How to replace a stylus
Firstly lock the turntable tone arm, unscrew the cartridge, gently remove the stylus from the cartridge and insert a new stylus. A stylus is changed usually by pulling straight out and in the opposite direction of the turntable's arm. If the stylus doesn't come with directions, try these: with one hand, hold the cartridge to steady it. With the other hand, using a pair of tweezers, grasp the stylus from both sides and pull. Install the new stylus: holding the stylus from the top, press it gently into the space at the tip of the cartridge where the old stylus had been. Don't force it.
Proper care comprises of the following:
Cleaning of record by means of carbon fibre brush before and after every use. Cleaning of record by using record cleaning machine once in a while.
Cleaning of stylus by means of a fine antistatic brush. Please remember to remove dust from the diamond tip before and after playback of each record. Use the brush in the forward direction from the rear of the cartridge towards the stylus tip and never from stylus tip to the rear of the cartridge and never from side to side.
Proper adjustment of antiskating, azimuth and tracking force.
Options and Replacement Styli

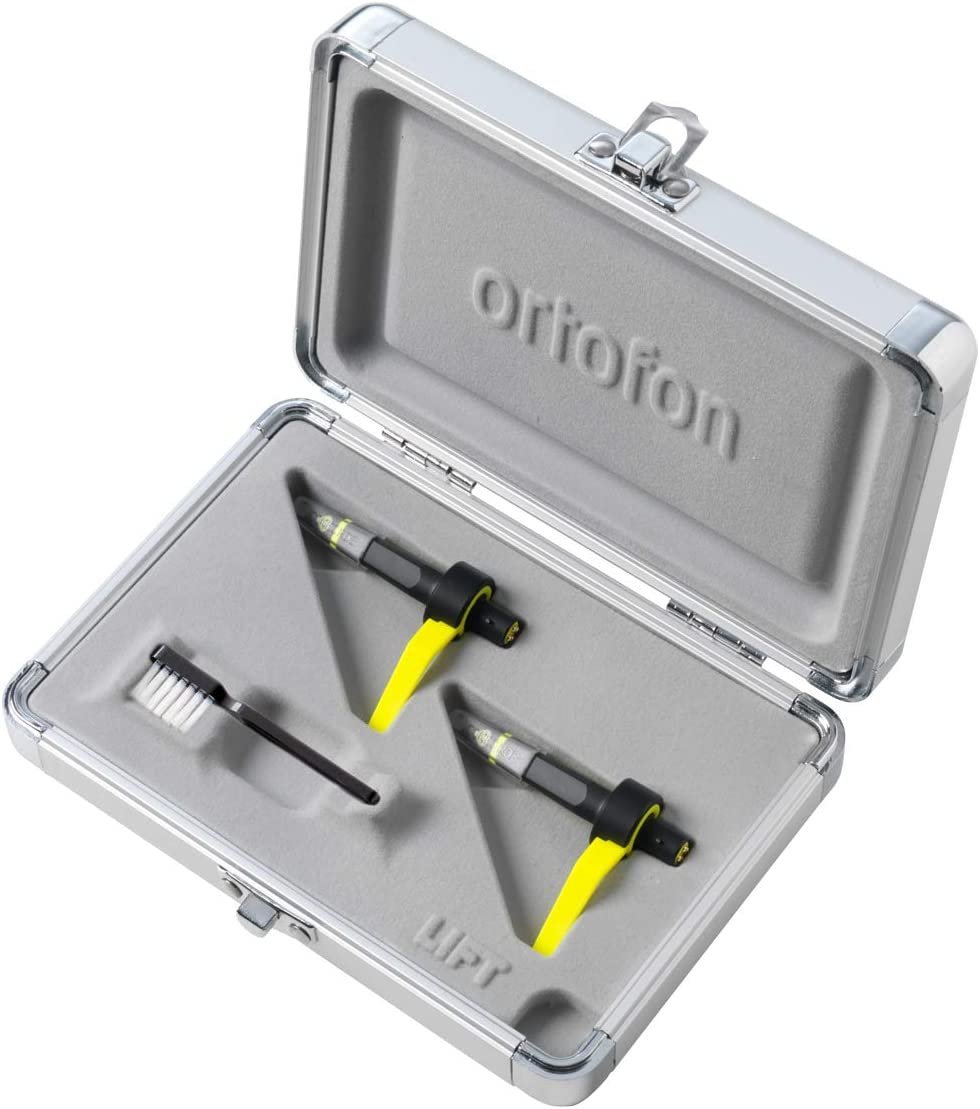

The Concorde MK2 Series is available for purchase as either a single cartridge or a "Twin" set including two cartridges (both with pre-installed styli) and an aluminum flight case.
Replacement styli for all the Concorde MK2 series retains the cartridges name for easily finding your direct replacement.
Example:
Cartridge: Concorde MK2 Mix
Replacement Styli: Stylus MK2 Mix
