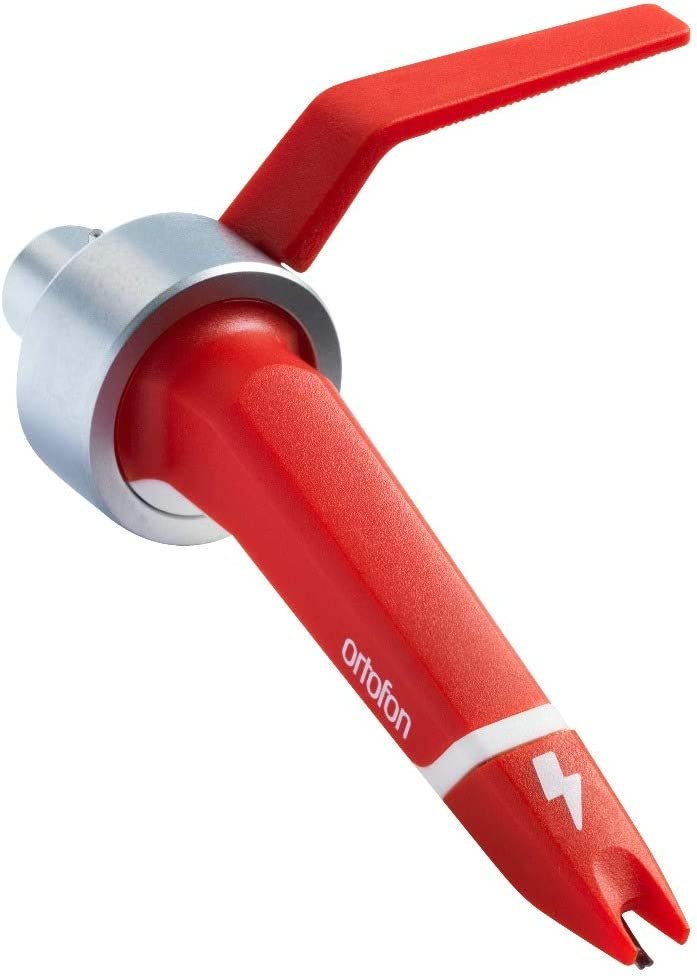

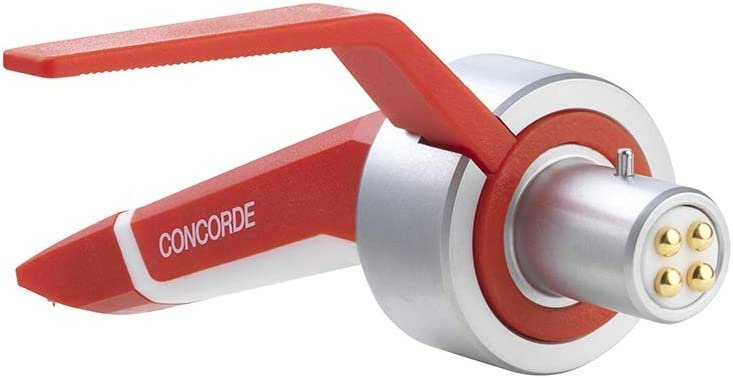

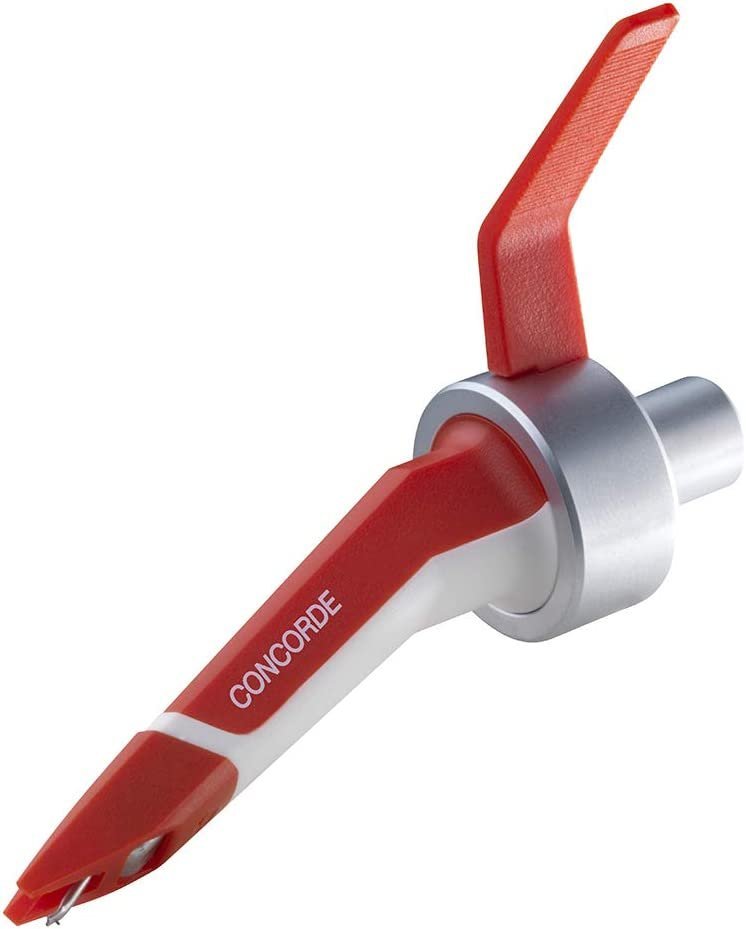

Concorde MK2 DigitalConcorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.Stylus TypeSphericalSphericalSphericalSphericalEllipticalTracking Force3.0g4.0g4.0g4.0g3.0gOutput6 mV6 mV10 mV10 mV8 mVFrequency Range20 - 20,000 Hz20 - 20,000 Hz20 - 18,000 Hz20 - 18,000 Hz20 - 20,000 HzSummaryBalanced and functional entry-level cartridgeAdvanced versatile allrounder cartridge for general purposeSophisticated cartridge especially designed for DVS-usersHigh-performance cartridge for precise scratching and back cueingHigh-quality cartridge with superb sound quality. Ideal for club & studioHow to replace a stylusFirstly lock the turntable tone arm, unscrew the cartridge, gently remove the stylus from the cartridge and insert a new stylus. A stylus is changed usually by pulling straight out and in the opposite direction of the turntable's arm. If the stylus doesn't come with directions, try these: with one hand, hold the cartridge to steady it. With the other hand, using a pair of tweezers, grasp the stylus from both sides and pull. Install the new stylus: holding the stylus from the top, press it gently into the space at the tip of the cartridge where the old stylus had been. Don't force it.Proper care comprises of the following:Cleaning of record by means of carbon fibre brush before and after every use. Cleaning of record by using record cleaning machine once in a while.Cleaning of stylus by means of a fine antistatic brush. Please remember to remove dust from the diamond tip before and after playback of each record. Use the brush in the forward direction from the rear of the cartridge towards the stylus tip and never from stylus tip to the rear of the cartridge and never from side to side.Proper adjustment of antiskating, azimuth and tracking force.Options and Replacement StylisThe Concorde MK2 Series is available for purchase as either a single cartridge or a "Twin" set including two cartridges (both with pre-installed styli) and an aluminum flight case.Replacement styli for all the Concorde MK2 series retains the cartridges name for easily finding your direct replacement.Example:Cartridge: Concorde MK2 MixReplacement Styli: Stylus MK2 Mix
