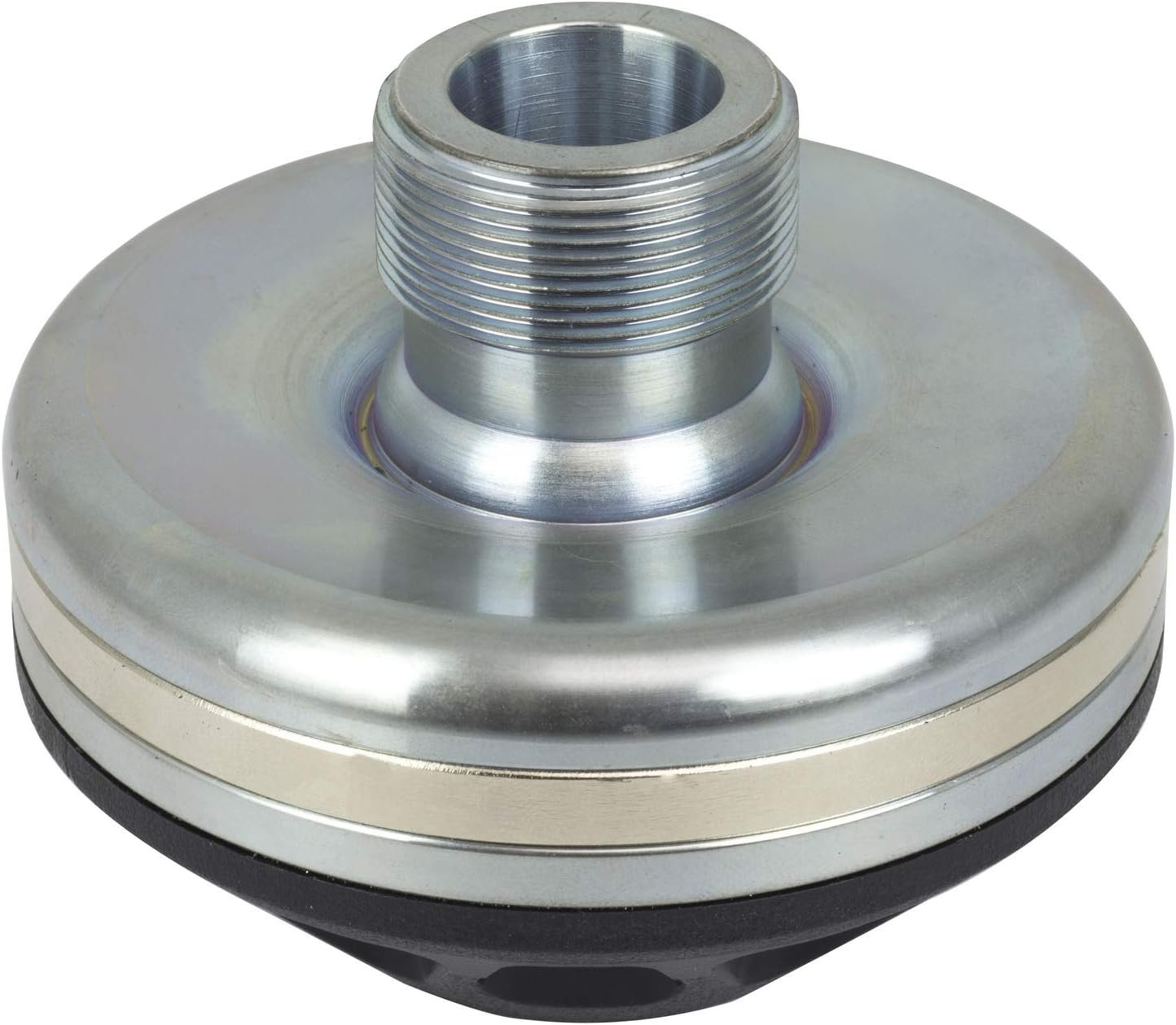

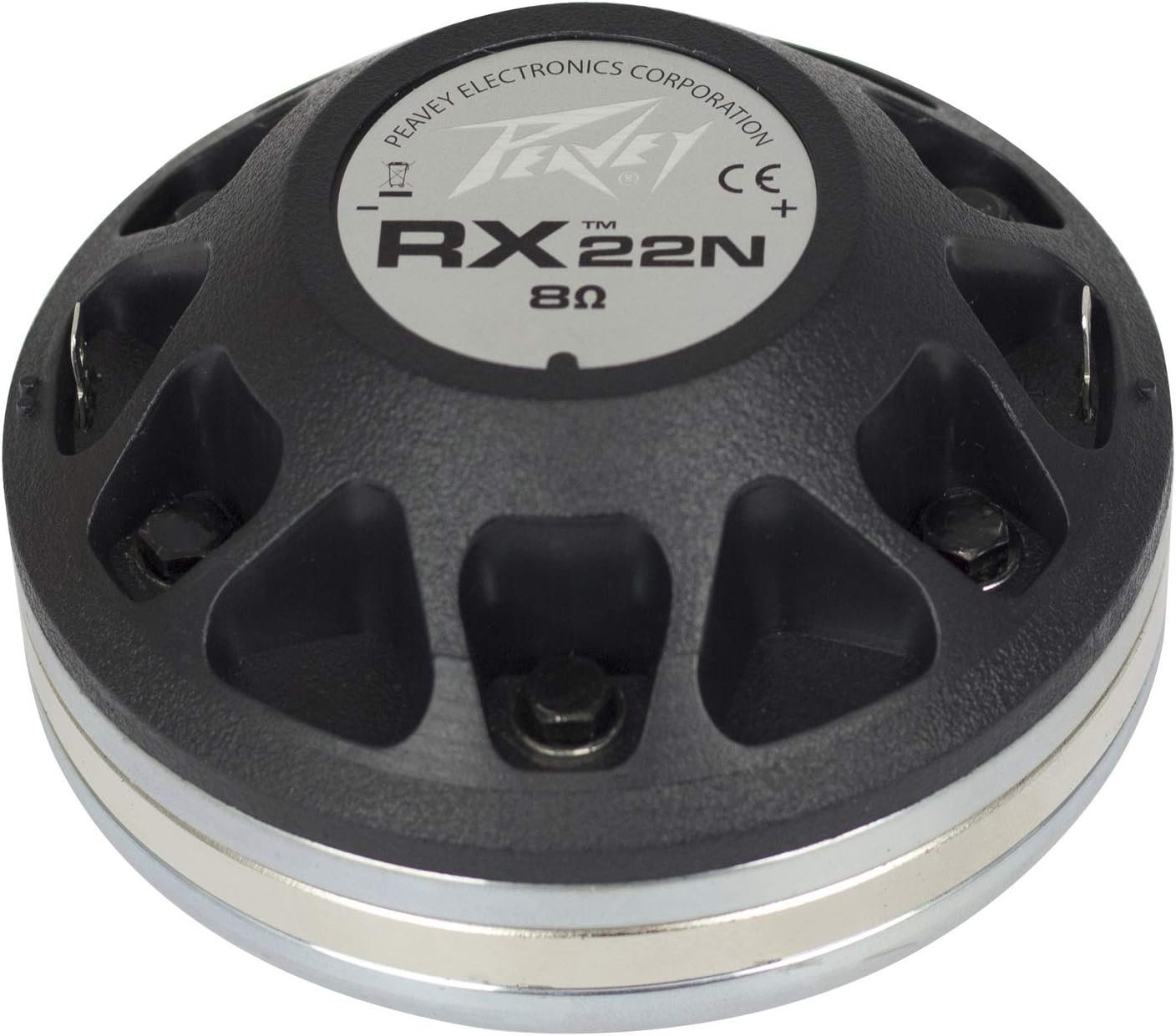

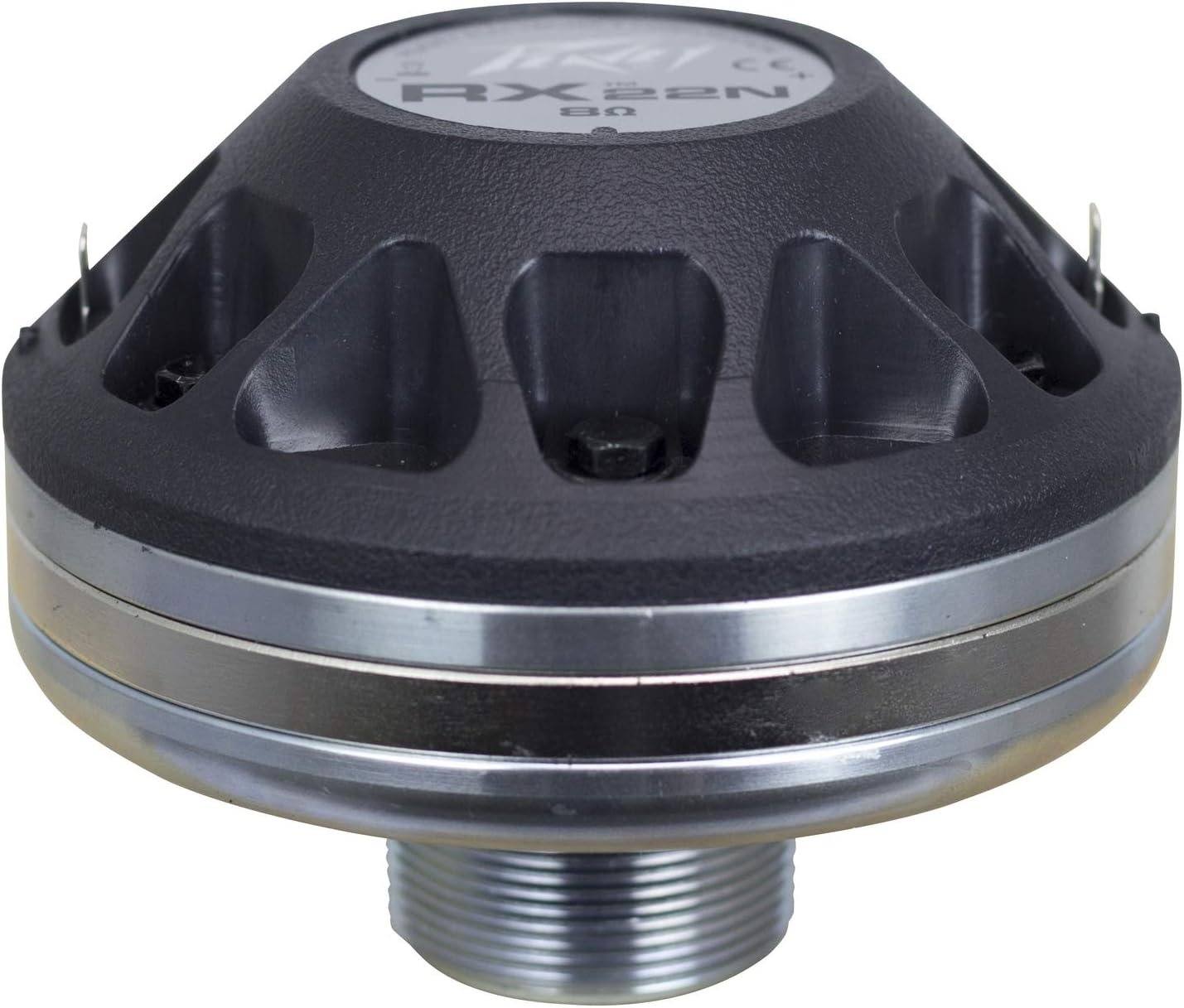

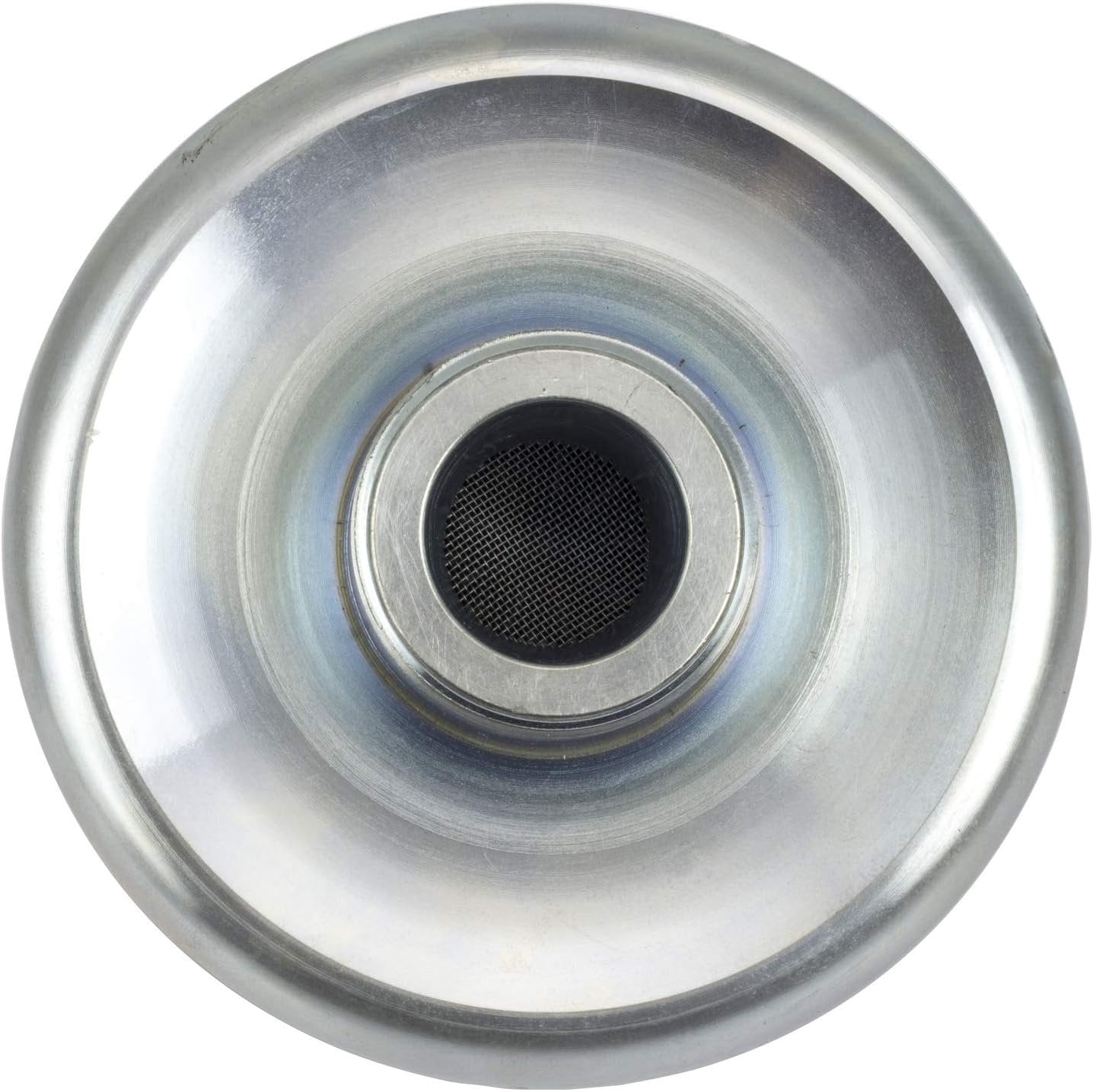

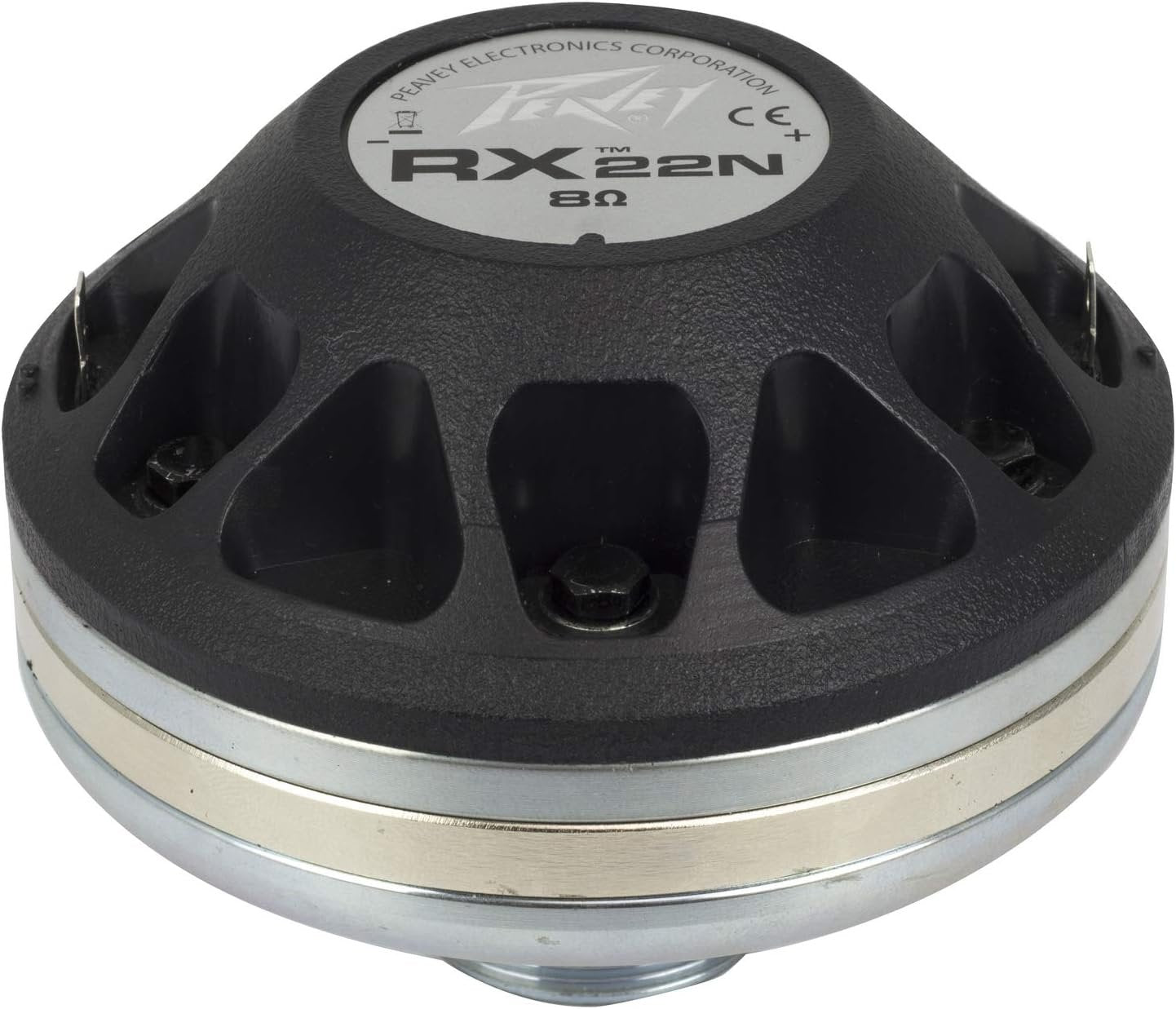

RX™ 22N Neo HF Driver

RX™ 22N Neo HF Driver RX™ 22N Neo HF Driver 2" Throat Parameter: 0.875" / 22 mm Nominal Impedance: 8 Ohms Minimum Impedance: 5.2 Ohms DC Resistance: 5.1 Ohms Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984) Sensitivity: 111 dB / 1W 1m On-axis on 90º H x 45º V horn Nominal Efficiency: 30% Frequency Response: 500 Hz to 20,000 Hz Recommended Crossover: 1,200 Hz at 12 dB / Octave Lowest Recommended Crossover: 500 Hz at 12 dB / Octave Diaphragm: Commercially pure titanium Voice Coil Diameter: 2.0" / 50.8 mm Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin Voice Coil Cooling: Ferrofluid Flux Density: 20,500 gauss (2T) Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth Horn Coupling Diameter: 7/8" (22.2 mm) Horn Coupling Threads: Standard 1 3/8" - 18" Net Weight: 2 lbs. 12 oz. Shipping Weight: 3 lbs. 11.5 oz. Diaphragm Kit: 03617300 Weight Packed: 2.98 lb(1.35 kg) Width Packed: 4.5"(11.43 cm) Height Packed: 4.725"(12.0015 cm) Depth Packed: 3.55"(9.017 cm)
